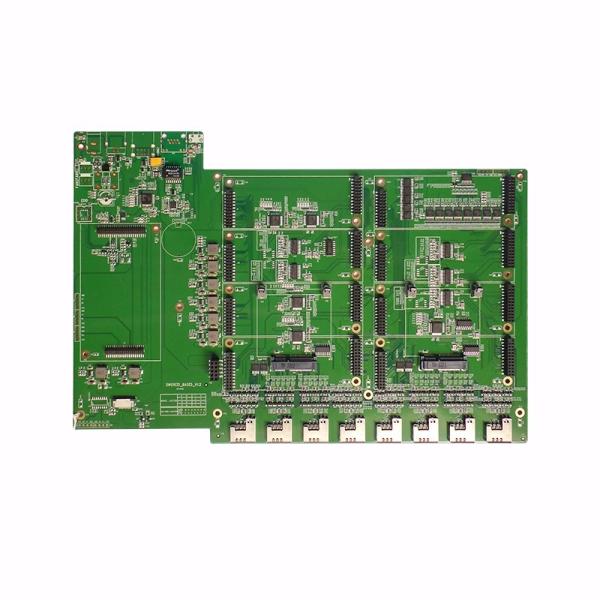

    Turnkey Electrical Switch Circuit Board PCBA Manufacturers

    Ask Lasest Price
    Brand Name : FASTPCBA
    Model Number : One-Stop PCB Assembly
    Certification : IATF16949, ISO13485, ISO9001
    Price : 1
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 150000 Pieces per Month
    Delivery Time : 5
    • Product Details
    • Company Profile

    Turnkey Electrical Switch Circuit Board PCBA Manufacturers

    One-Stop Turnkey Services Electrical Switch Circuit Board Pcba Design Multilayer Flex Pcb Fabrication


    PCB Capability


    ArticleDescriptionCapability
    MaterialLaminate materialsFR4, High TG FR4, High Frequency, Alum, FPC...
    Board CuttingNumber of layers1-48
    Min.thickness for inner layers
    (Cu thickness are excluded)
    0.003”(0.07mm)
    Board ThicknessStandard(0.1-4mm±10%)
    Min.Single/Double:0.008±0.004”
    4layer:0.01±0.008”
    8layer:0.01±0.008”
    Bow and twistno more than 7/1000
    Copper WeightOuter Cu weight0.5-4 0z
    Inner Cu weight0.5-3 0z
    DrillingMin size0.0078”(0.2mm)
    Drill deviation±0.002″(0.05mm)
    PTH hole tolerance±0.002″(0.005mm)
    NPTH hole tolerance±0.002″(0.005mm)
    Solder MaskColorGreen,white,black,red,blue…
    Min solder mask clearanace0.003″(0.07mm)
    Thickness(0.012*0.017mm)
    SilkscreenColorwhite,black,yellow,blue…
    Min size0.006″(0.15mm)
    Max Size of Finish Board700*460mm
    Surface FinishHASL,ENIG,immersion silver,immersion tin,OSP…
    PCB OutlineSquare,circle,irregular(with jigs)
    PackageQFN,BGA,SSOP,PLCC,LGA

    Delivery Time for PCBA

    Order ConditionsStandard Delivery DateThe fastest Delivery Date
    Prototype (<20 pcs)2 days8 hours
    Small Volum (20-100 pcs)3 days12 hours
    Medium Volum(100-1000 pcs)6 days24 hours
    Mass productions (>1000 pcs)Depends on BOMDepends on BOM


    FASTPCBA is the most cost-effective manufacturer with procurement team average pcba industry experience over 15 years, providing the most competitive pcba price and high quality pcb components for customers of industrial control, automotive, medical etc.


    With and IATF16949 and ISO14000, 13485, 9001 certificates, complete ESD protection & dust free smt workshop, experienced engineer team, ERP pcb process control online, 9 steps pcb testing, ensuring high quality pcb & pcba service.


    Due to quality oriented, FASTPCBA has continuous orders in such fierce competition pcba market environment, welcome to consult or send a inquiry to get best pcb quotation.
