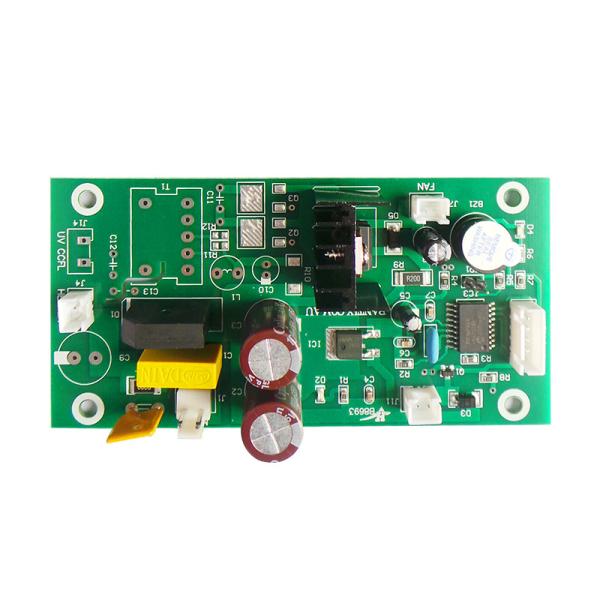

    Turn Key One Stop IATF16949 Printed Circuit Board Assembly Service

    Ask Lasest Price
    Brand Name : FASTPCBA
    Model Number : Multilayer PCBs Assembly
    Certification : IATF16949, ISO13485, ISO9001
    Price : 1-20
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 150000 Pieces per Month
    Delivery Time : 5
    • Product Details
    • Company Profile

    Turn Key One Stop IATF16949 Printed Circuit Board Assembly Service

    One Stop OEM SMT PCB PCBA Printed Circuit Board Assembly Service


    Product Specification:


    ArticleDescriptionCapability
    SercivePCB and SMT assembly with one-stop service
    MaterialLaminate materialsFR4, high TG FR4, high frequency, alum, FPC
    Board cuttingNumber of layers1-48

    Min.thickness for inner layers

    (Cu thickness are excluded)

    0.003”(0.07mm)
    Board thicknessStandard(0.1-4mm±10%)
    Min.Single/Double:0.008±0.004”
    4layer:0.01±0.008”
    8layer:0.01±0.008”
    Bow and twist7/1000
    Copper weightOuter Cu weight0.5-4 0z
    Inner Cu weight0.5-3 0z
    DrillingMin size0.0078”(0.2mm)
    Drill deviation±0.002″(0.05mm)
    PTH hole tolerance±0.002″(0.005mm)
    NPTH hole tolerance±0.002″(0.005mm)

    Solder mask


    ColorGreen,white,black,red,blue…
    Min solder mask clearanace0.003″(0.07mm)
    Thickness(0.012*0.017mm)
    SilkscreenColorwhite,black,yellow,blue…
    Min size0.006″(0.15mm)
    E-testFunction Test100% Functional test
    PCBA TestingX-ray,AOI Test,Functional test
    Pcb assemblyone-stop service electronic manufacxturer service
    Component sourcingYes
    CertificateIATF16949,ISO9001
    Delivery time:PCB3-12days
    PCBA8-20days
    Tolerance of pcb±5%
    Max size of finish board450*450mm
    MOQNO MOQ (1pcs)
    Surface FinishHASL,ENIG,immersion silver,immersion tin,OSP…
    PCB outlineSquare,circle,irregular(with jigs)
    packageQFN,BGA,SSOP,PLCC,LGA
    Sub-assemblyPlastic,metal,screen

    FASTPCBA is the best choice for high quality pursuit customers of automotive pcba, medical pcba, industry pcba, communication pcba, military pcba, aerospace pcba etc.


    OUR ADVANTAGE


    Quality System: Passed ISO9001 / ISO13485 / TATF16949:2016 quality system certification, processed products meet export European and American standards
    Professional team: Professional component procurement team, centralized procurement, saving procurement costs, labor costs, quality costs for you.
    No MOQ:As for MOQ, one piece PCB prototype is ok for us. FASTPCBA full support from proofing to batch
    Global Support:Major customer groups: automotive, medical electronics, industrial, security, communication, power and so on.
    NDA:We are willing to sign the NDA agreement in accordance with the local laws of customers and promise to keep customer data confidential
    Delivery 24 hours:Professional prototype: PCB prototype is delivered within 24 hours.Mass production, the fastest delivery time is 2-5 days



    NARRATE STORIES OF FASTPCBA


    FASTPCBA adheres to the service tenet of “think more and do more for customers, take quality as the root, and service as the foundation”.
